CLAREX Diffusion Reflectors (DR-I)
Optimizes the uniformity and brightness of ambient lit displays.
Acrylic sheets with reflective textured surfaces. Traditionally used behind LCD displays so they could be seen using ambient light. They’re not very popular anymore, but they are still being used for replacements in legacy systems, as well as some new and unique applications.
Benefits
- Easily cut to size
- Many color and appearance options to choose from
Significantly enhances display qualities for many applications
Applications
- LCD reflectors in legacy systems
- Reflective targets
- Prototyping
- Modeling
Thicknesses
- 0.5mm
- 0.6mm
- 0.7mm
- 0.8mm
- 1.0mm
Size
- 380mm x 530mm is standard
- Please contact us to discuss standard and custom sheet size options.
Customization
Custom sheets & parts to meet your application
Do you have a unique design requirement? We can help! Choose the thickness, formulation, additives, color dye/pigments, surface textures, surface coatings, and optical coatings for your custom material configuration, and if we don’t already have it in stock at our warehouse in New York, we can typically have it ready for you in 4-8 weeks. We can even fabricate the finished parts for you.

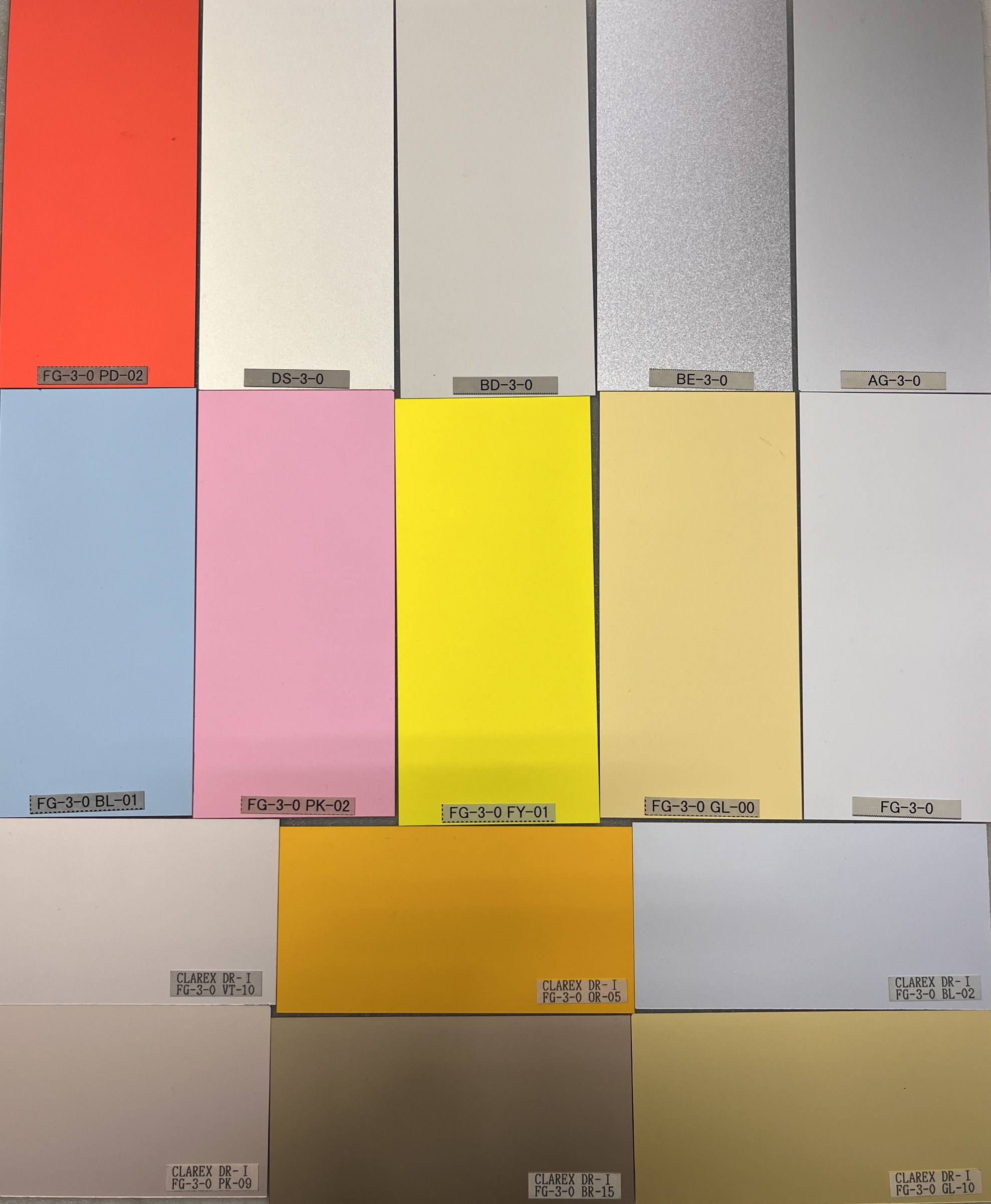

Optical Properties
| Grade | Color Tone | Lightness – L Value |
|---|---|---|
| BD-3-0 | Silver | 86 |
| DS-3-0 | Silver | 84 |
| DN-3-0 | Silver | 82.1 |
| FG-3-0 | Silver | 77 |
| FG-3-0 GL-100 | Gold | 72 |
| BD-3-0 G-100 | Gold | 83.3 |
| FG-3-0 FY-04 | Yellow | 83 |
| DS-3-0 FY-02 | Yellow | 83.9 |
| DS-3-0 FY-04 | Yellow | 81.4 |
