TechXT-AR Large-Format Acrylic Sheets with Anti-Reflective Coating
Large-format acrylic sheets with dual-side anti-reflective and hard-coat protection for high-clarity display applications.
TechXT-AR sheets are made from commercial-grade clear extruded acrylic with hard-coat, anti-reflective, and mild oleophobic coatings applied to both sides. This multi-layer construction helps reduce reflections to less than 2% while delivering greater than 98% light transmission across the visible range.
Stocked in large formats, typically 48” x 96″, TechXT-AR is well-suited for larger display applications that require optical clarity, surface durability, and easier cleaning.
Note: This is not CLAREX brand material
Benefits of Large AR Acrylic Sheets
High Transmission, Low Reflection
Delivers greater than 98% light transmission and less than 2% reflection for clearer viewing and reduced glare in the visible range.
Large-Format Availability
Stocked in large sheet sizes, typically 48 x 96″, for larger display, viewing, and protective panel applications.
Scratch- & Chemical-Resistant Surface
Hard-coated surfaces help improve durability in applications that require routine handling and cleaning.
Excellent Machinability
Supports machining and laser cutting for custom sizes, fabricated parts, and finished components.
Lightweight, UV-Stable Material
Offers a lighter-weight alternative to glass with good long-term stability in UV-exposed environments.
Easy to Clean & Customize
Mild Oleophobic surfaces are easier to clean and help reduce visible smudging. AR coating can also be applied to one side only for custom applications.
Common Applications for Large AR Sheets
Formulated for large-format optical displays and protective panels that require high clarity, low reflection, and durable surface protection.
Information Displays
Ideal for display covers and viewing panels that require high clarity and low reflection
Kiosks
Well-suited for kiosk screens and protective surfaces that need durability, clarity, and easier cleaning
Readable Outdoor Displays
Helps reduce glare and improve visibility in bright or high-ambient-light environments
Lighting
Suitable for lighting applications that benefit from high transmission and reduced surface reflection
Digital Signage
Useful for screens and display panels where glare reduction and high clarity improve readability
Touchscreen Covers
A good fit for interactive displays that need optical clarity, durability, and easier cleaning
Sample materials may be available to help you evaluate material performance.
THICKNESS OPTIONS
- 2.0mm (0.079″)
- 3.0mm (0.118″)
- 4.5mm (0.177″)
- 6.0mm (0.237″)
Sheet Size Options
- Standard size: 48″ x 96″
- Custom sizes: Maximum dimensions depend on application. Contact us to discuss available options.
Finished Parts
Can be fabricated and finished to customer specifications.
PRODUCT SPECS

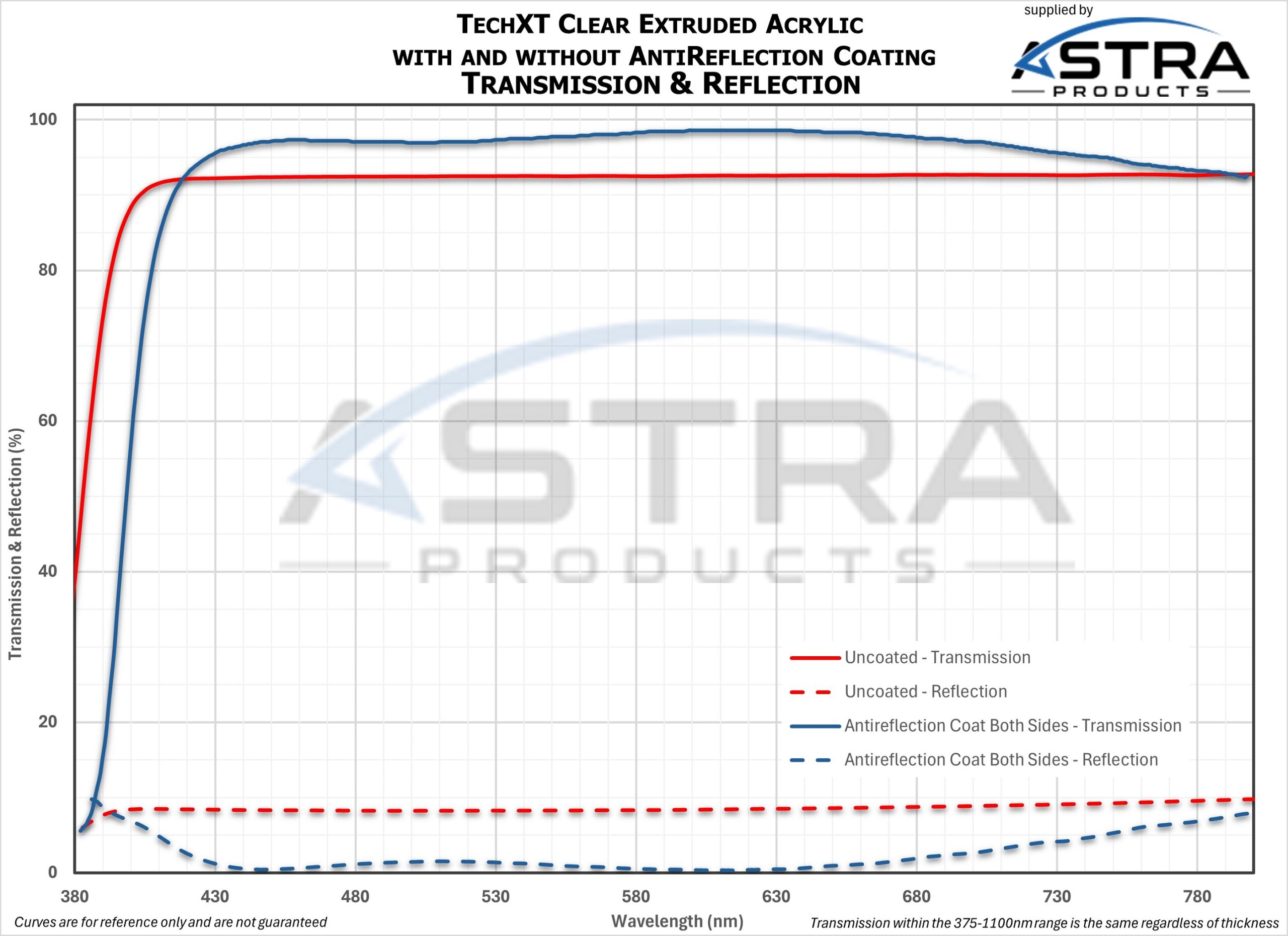

TechXT Transmission & Reflection Curves
PRODUCT Properties
Physical Properties of TechXT Anti-Reflective Coated Extruded Acrylic
| Property | Method | Unit | Value |
|---|---|---|---|
| Total Visible Transmission | % | >97 | |
| Total Visible Reflection | % | <1.50 | |
| Specific Gravity | ASTM D-792 | 1.19 | |
| Tensile Strength | ASTM D-638 | psi | 11,000 |
| Modulus of Elasticity | ASTM D-638 | psi | 490,000 |
| Flexural Strength | ASTM D-790 | psi | 17,000 |
| Maximum Recommended Continuous Temperature | °F | 185 | |
| Coefficient of Thermal Expansion | ASTM D-696 | in/in/ºF | 3.0 x 10-5 |
| Deflection Temperature | ASTM D-648 | °F | 203 |
| Cold Resistance | -40ºC x 100hr | No Change | |
| Abrasion Resistance | Dry Cloth Rub Test, 2.5lb load Alcohol Soaked Cloth Rub Test, 2.5lb load | 600 Strokes 20 Strokes | |
| Weatherability | High Humidity: 50ºC, 95% RH Salt Fog: 40days, 5%NaCl, 35ºC | No Change | |
| UV Stability | 2000hr Arc Test at 100,000 LUX | No Change | |
| Coating Adhesion | Snap Tape Test | No change | |
| Pencil Hardness | >5H | ||
| Flammability Rating | UL 94HB | ||
| Contact Angle | 100º | ||
| CHEMICAL RESISTANCE (24hr immersion) | |||
| Isopropyl Alcohol (50%) | No Change | ||
| Windex Cleaner, with and without ammonia | No Change | ||
| Distilled Water | No Change | ||
| Artificial Perspiration (5mg NaCl, 5ml Acetic Acid, 3ml Butyric Acid, 84ml Distilled Water) | No Change | ||
| Acetone | No Change | ||
| Coffee | No Change | ||
| Coke | No Change | ||
| Saline Solution (170g NaCl per 3.8l of water) | No Change | ||
Ready to Get Started with TechXT-AR Acrylic Sheets?
Whether you need large-format anti-reflective acrylic sheets, custom sizes, one- or two-sided AR coating, or fabricated finished parts, our team can help configure the right solution for your application.
